Orford EB-PT Rear Loading Range

---

Upright Glass Door Commercial Pass through Fridge with removeable package and rear loading doors
Our rear loading pass through cabinets are the perfect solution to allow your customers to access product from the front while being able to restock from the rear.
Our EB Range is our most energy efficient cabinet, which has a removable package making it user and technician friendly for maintenance and repairs.

• Operating temperature range 0°c~5°c
• Ambient temperature range 0°c~40°c​
• Shelving: 8 x white PVC coated shelves
• Shelving: 2 x stainless steel base tray
• Shelf Dims: 475w x 480d (mm)
• LED lighting
• Lightbox assembly*
• Carel Digital Controller
• Front Glass Doors with locking tabs
• Rear powder coated doors with locking tabs
• Doors heated with discharge air
• Lockable easy roll castors
• R134a Refrigerant
• EMC Compliant and MEPS compliant
• Rated current draw: 2.8 Amps
• 10 Amp Australian power plug
• Energy Consumption: 4.24 kWh/24hrs
• 2 years warranty (parts and labour) conditions apply

*The lightbox assembly can be easily removed and does not affect the pricing.
With assembly height is 2220mm without the assembly height is 2010mm.

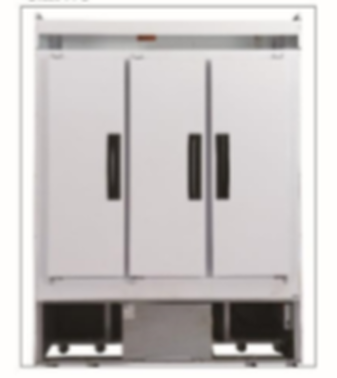

EB-PT  rear loading pass through cabinets come in three sizes

• EB30R-Sn-PT 900 Litre cabinet 1094mm w x 800 mm d x 2220 mm H ​
• EB36R-Sn-PT 1071 Litre cabinet 1286 mm w x 800 mm d x 2220 mm H
• EB45R-Sn-PT 1384 Litre cabinet 1640 mm w x 800 mm d x 2220 mm H

*The lightbox assembly can be easily removed and does not affect the pricing.
With assembly height is 2220mm without the assembly height is 2010mm.

shop online for eb PT rear loading cabinets

EB30R-SN-PT Spec sheet

eb36r-sn-pt spec sheet

eb45R-sn-pt spec sheet

The Orford Group EB range is protected by Australian Design no 345317
